Siemens

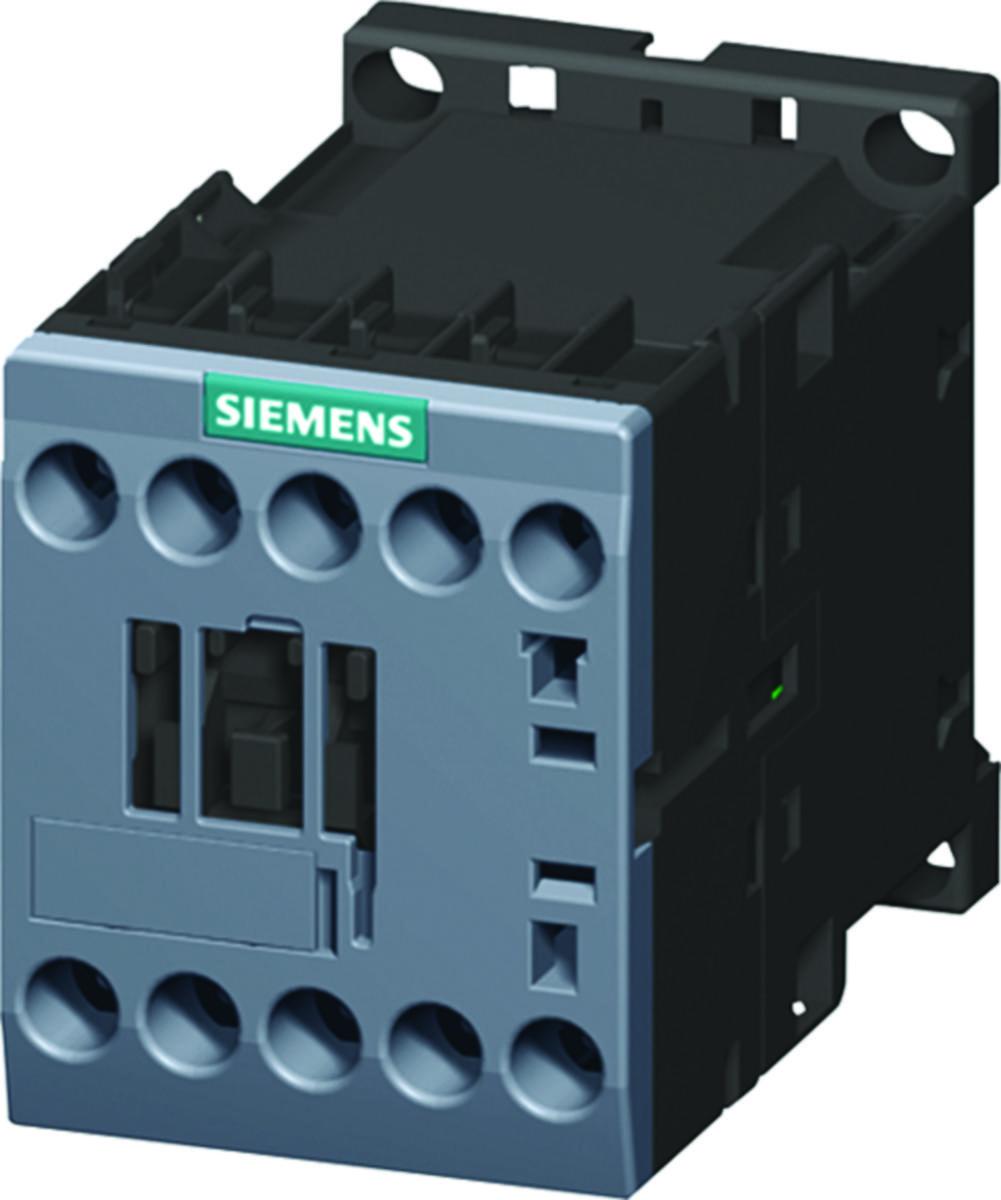

Contactor 3RT20 S00 3-18.5 kW DC-coil
CONTACTOR,AC3:3KW 1NO DC24V 3RT2015-1BB41
Artikelnummer: Lev. artikelnr:
3268506
3RT2015-1BB41
för att se saldo och pris
DC power-operated, size S00.. Those having -0CC0 at the end of the type number have the opportunity to communicate.
- Article number: 3268506
- Suppl. article no: 3RT2015-1BB41
- Ean no: 4011209780774
- Material class QO340B
Teknisk data
- Type: 3RT2015-1BB41
- Rated operation power at AC-3, 400 V: 3 kW
- Rated operation current Ie at AC-1, 400 V: 18 A
- Rated operation current Ie at AC-3, 400 V: 7 A
- Rated control supply voltage DC: 24 V
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: -99999
- Voltage type for actuating: DC
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: -99999
- Type of electrical connection of main circuit: Screw connection
- Suitable for distribution board: Yes
- Rated operation current Ie at AC-4, 400 V: 6.5 A
- Rated operation power at AC-4, 400 V: 3 kW
- Rated operation power NEMA: 2.20649625 kW
- REACH Date: 2022-03-14
- REACH Information obligation: No
