Siemens

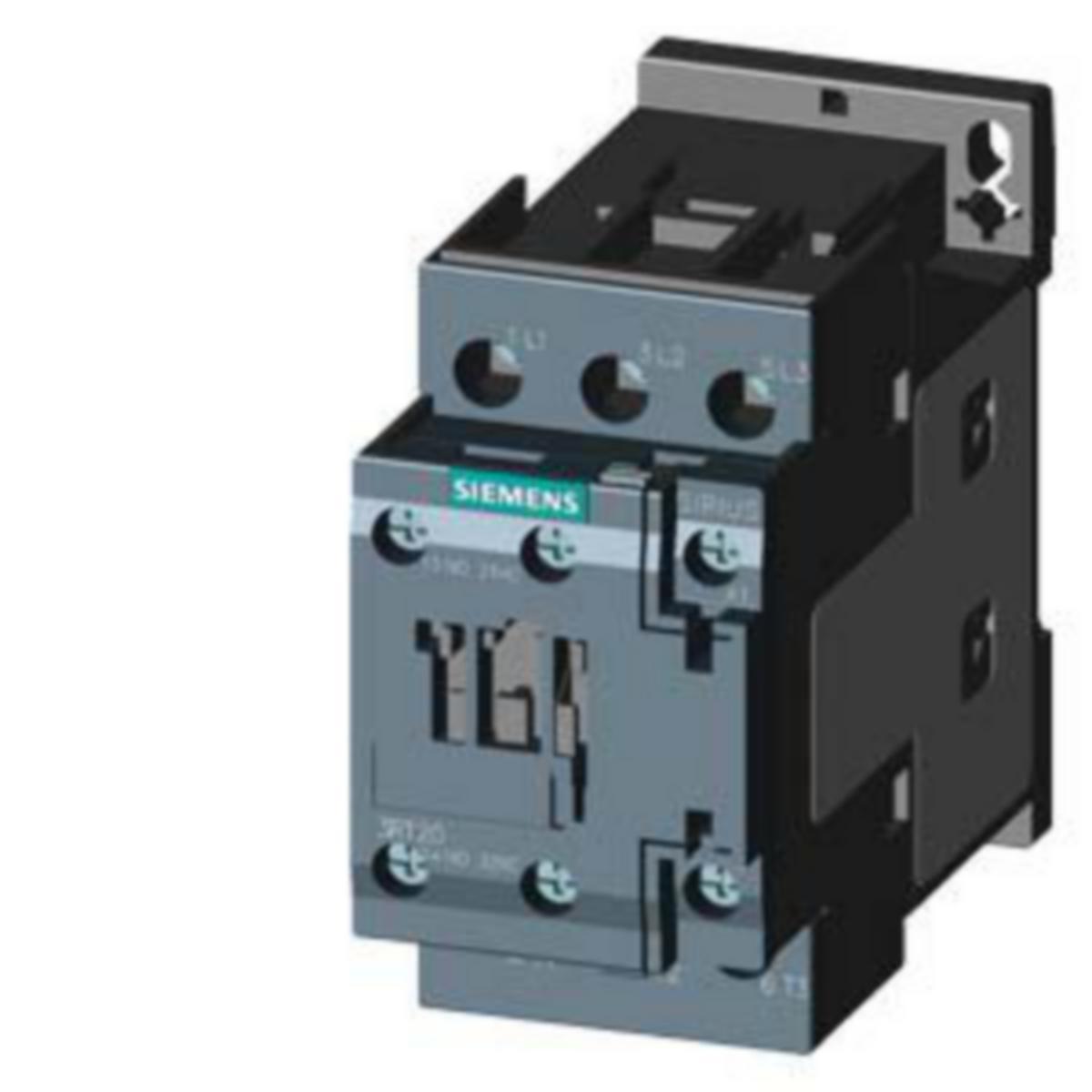

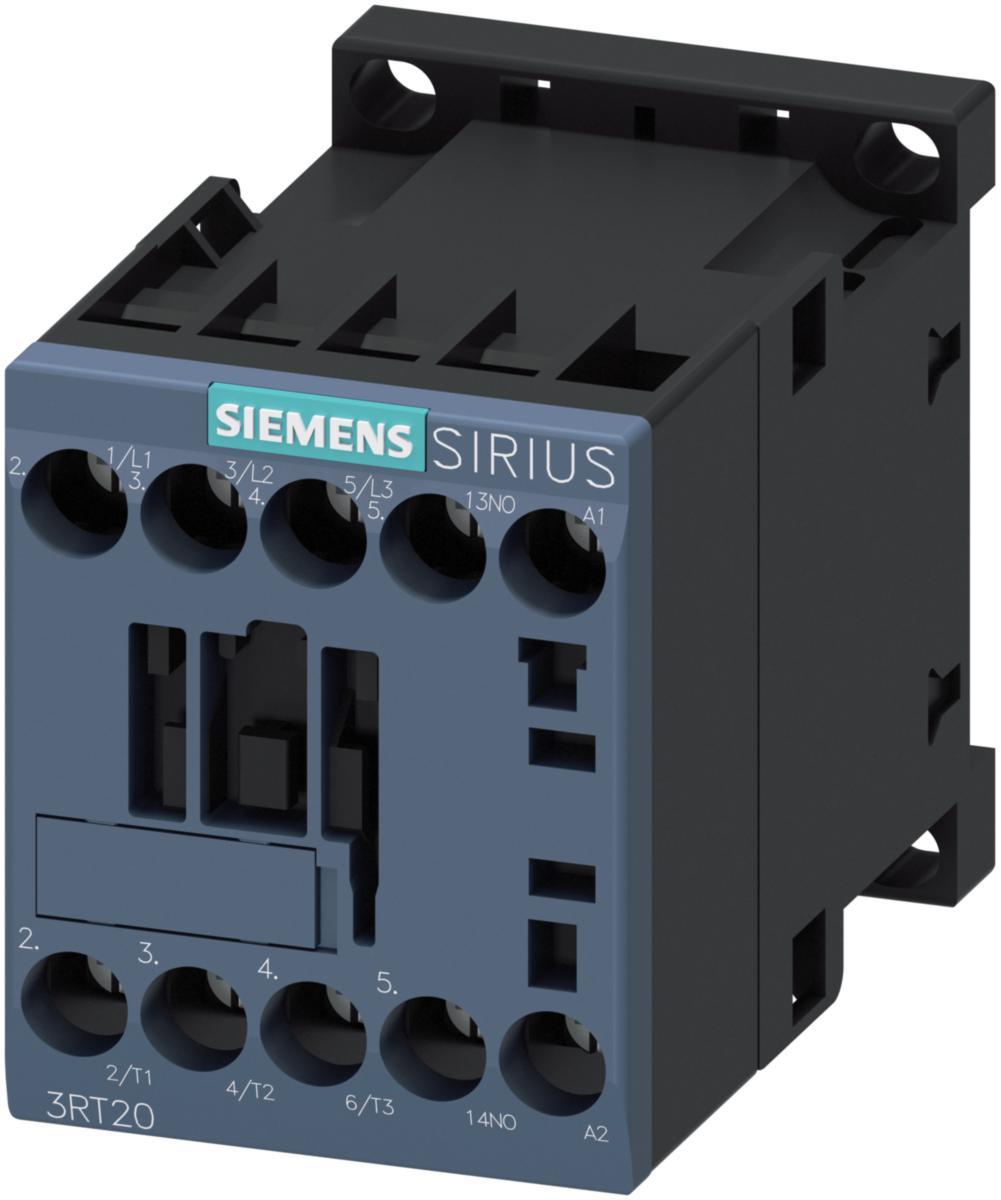

Contactor 3RT20 S00 3-7, 5 kW AC-coil
CONTACTOR,AC3:3KW 1NO AC230V 5 3RT2015-1AP01
Artikelnummer: Lev. artikelnr:
3268504
3RT2015-1AP01
för att se saldo och pris
AC power operated, size S00
- Article number: 3268504
- Suppl. article no: 3RT2015-1AP01
- Ean no: 4011209780767
- Material class QO3400
Teknisk data
- Packagin Size: 1 ST/5 ST
- Type: 3RT2015-1AP01
- Rated operation power at AC-3, 400 V: 3 kW
- Rated operation current Ie at AC-1, 400 V: 18 A
- Rated operation current Ie at AC-3, 400 V: 7 A
- Rated control supply voltage AC 50 Hz: 230 V
- Rated control supply voltage DC: -99999 V
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: -99999
- Voltage type for actuating: AC
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: -99999
- Type of electrical connection of main circuit: Screw connection
- Suitable for distribution board: Yes
- Rated operation current Ie at AC-4, 400 V: 6.5 A
- Rated operation power at AC-4, 400 V: 3 kW
- Rated operation power NEMA: 2.20649625 kW
- Rated control supply voltage AC 60 Hz: 230 V
- REACH Date: 2022-03-14
- REACH Information obligation: No
