Siemens

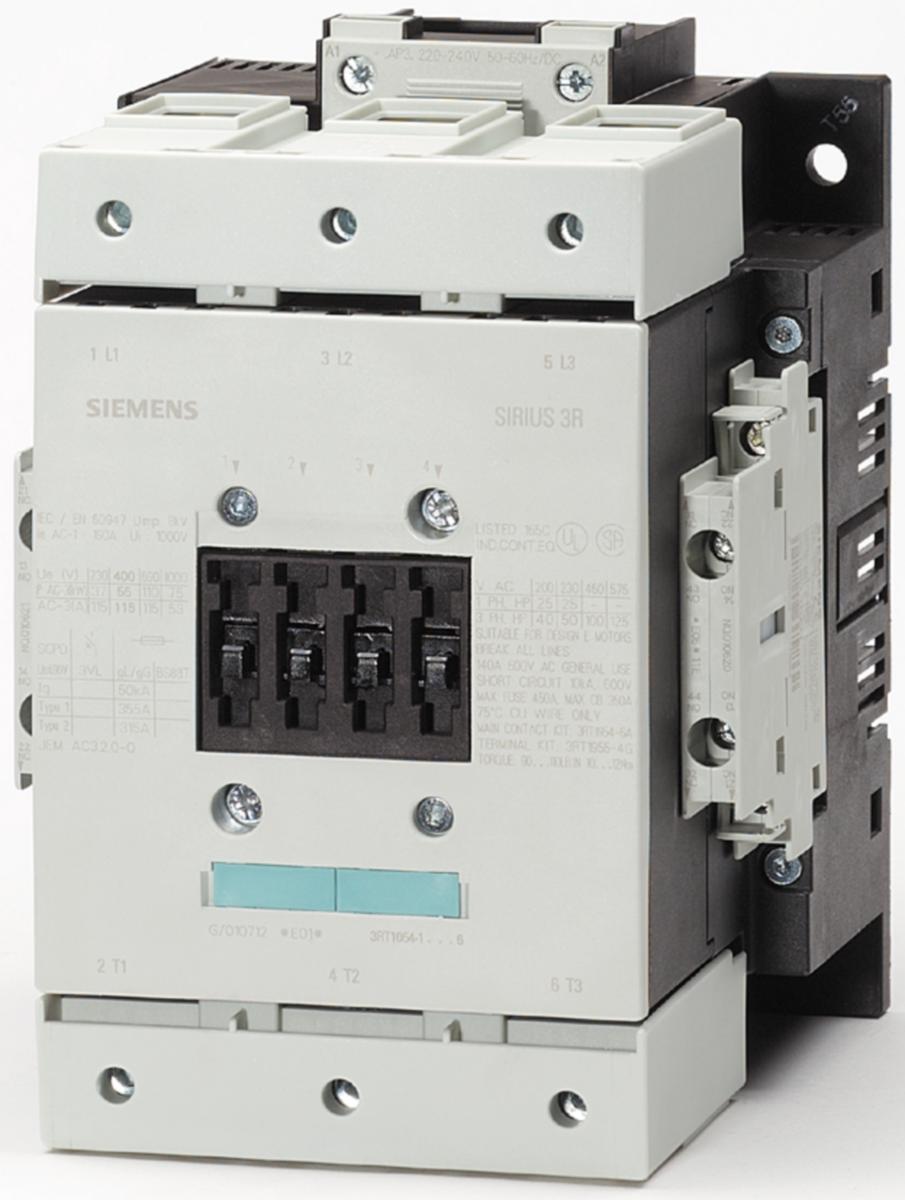

Contactor 3RT10 S6 3-pole AC- or DC-coil
CONTACTOR, 55KW/400V/AC-3 3RT1054-1AP36
Article number: Suppl. article no:
3268200
3RT1054-1AP36
to see price and stock
AC, or DC controlled, 2 sl+2 wide auxiliary contacts
- Article number: 3268200
- Suppl. article no: 3RT1054-1AP36
- Ean no: 4011209506954
- Material class QO340B
Technical data
- Type: 3RT1054-1AP36
- Rated operation power at AC-3, 400 V: 55 kW
- Rated operation current Ie at AC-1, 400 V: 160 A
- Rated operation current Ie at AC-3, 400 V: 115 A
- Rated control supply voltage AC 50 Hz: 220-240 V
- Rated control supply voltage DC: 220-240 V
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: -99999
- Voltage type for actuating: AC/DC
- Number of auxiliary contacts as normally open contact: 2
- Number of auxiliary contacts as normally closed contact: 2
- Type of electrical connection of main circuit: Frame clamp
- Suitable for distribution board: Yes
- Rated operation current Ie at AC-4, 400 V: 97 A
- Rated operation power at AC-4, 400 V: 55 kW
- Rated operation power NEMA: 73.549875 kW
- Rated control supply voltage AC 60 Hz: 220-240 V
- REACH Date: 2022-03-14
- Control voltage AC/DC: 220…240 V
- Auxiliary contacts: 2 NO + 2 NC
- REACH Information obligation: No
