Siemens

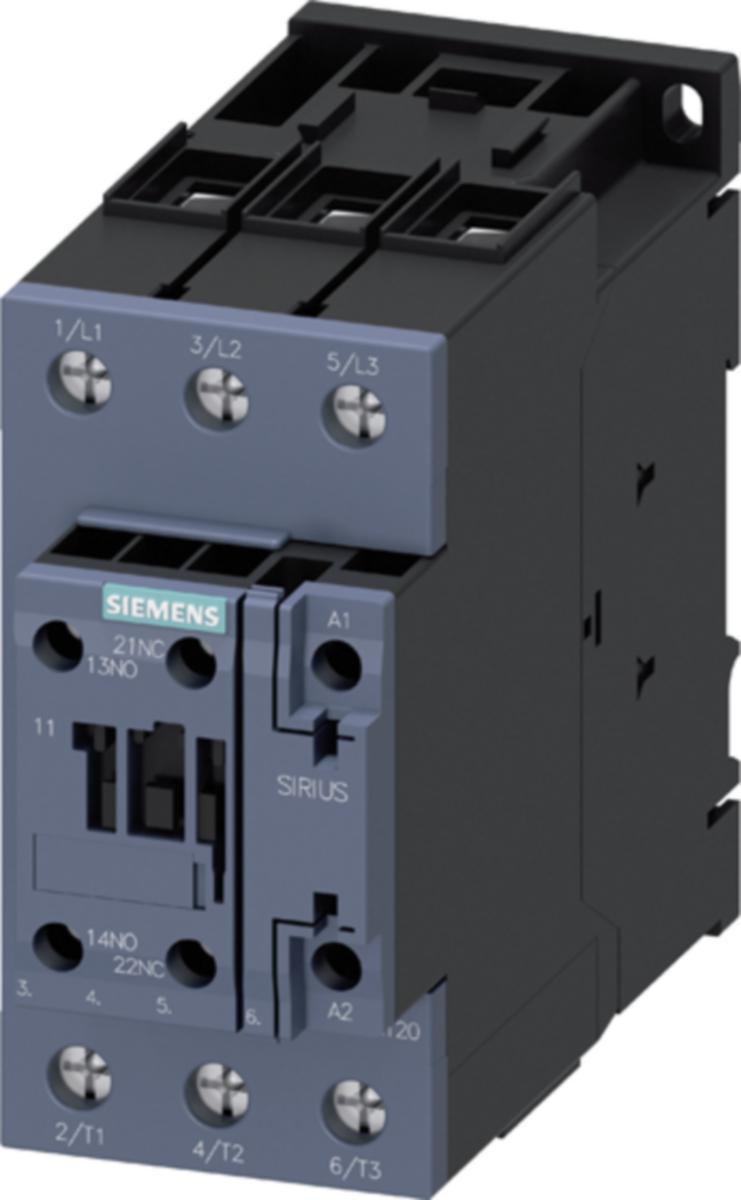

Contactor 3RT20 S2 18.5-37 kW AC-coil
CONTACTOR 22KW 230VAC 50HZ 3RT2036-1AP00
Article number: Suppl. article no:
3260476
3RT2036-1AP00
to see price and stock
AC operated
- Article number: 3260476
- Suppl. article no: 3RT2036-1AP00
- Ean no: 4011209939820
- Material class QO340B
Technical data
- Rated operation power at AC-3, 400 V: 22 kW
- Rated operation current Ie at AC-1, 400 V: 70 A
- Rated operation current Ie at AC-3, 400 V: 51 A
- Rated control supply voltage AC 50 Hz: 230 V
- Rated control supply voltage DC: -99999 V
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: -99999
- Voltage type for actuating: AC
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 1
- Type of electrical connection of main circuit: Screw connection
- Modular version: Yes
- Rated operation current Ie at AC-4, 400 V: 41 A
- Rated operation power at AC-4, 400 V: 22 kW
- Rated operation power NEMA: 29.41995 kW
- Rated control supply voltage AC 60 Hz: -99999 V
- REACH Date: 2022-03-14
- REACH Information obligation: No
