Schneider Electric
Contactor 9-38A LC1D, AC coil

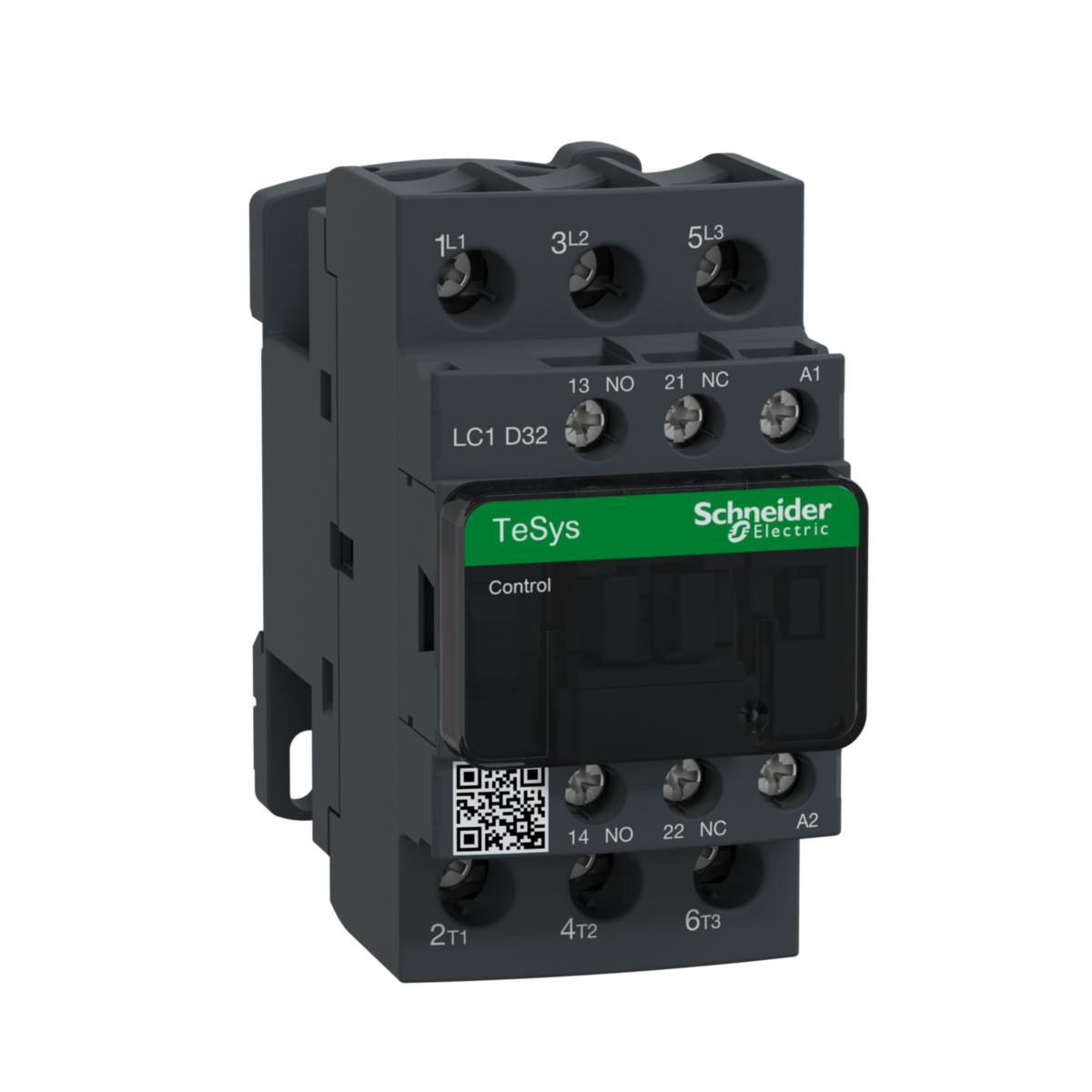

CONTACTOR 32A 15KW LC1D32P7
Artikelnummer: Lev. artikelnr:
3233044
LC1D32P7
för att se saldo och pris
AC operated. 1sl+1br auxiliary contact standard. Unencapsulated. 3-pole.
- Article number: 3233044
- Suppl. article no: LC1D32P7
- Ean no: 3389110351125
- Material class QO3600
Teknisk data
- Packagin Size: 1 ST/20 ST
- Type: LC1D32P7
- Rated operation power at AC-3, 400 V: 15 kW
- Rated operation current Ie at AC-1, 400 V: 50 A
- Rated operation current Ie at AC-3, 400 V: 32 A
- Rated control supply voltage AC 50 Hz: 230 V
- Rated control supply voltage DC: 0 V
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: 0
- Voltage type for actuating: AC
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 1
- Type of electrical connection of main circuit: Screw connection
- Suitable for distribution board: No
- Rated operation current Ie at AC-4, 400 V: 0 A
- Rated operation power at AC-4, 400 V: 7.5 kW
- Rated control supply voltage AC 60 Hz: 230 V
- REACH Date: 2022-07-20
- REACH Information obligation: No
