Schneider Electric
Contactor TeSys D Green

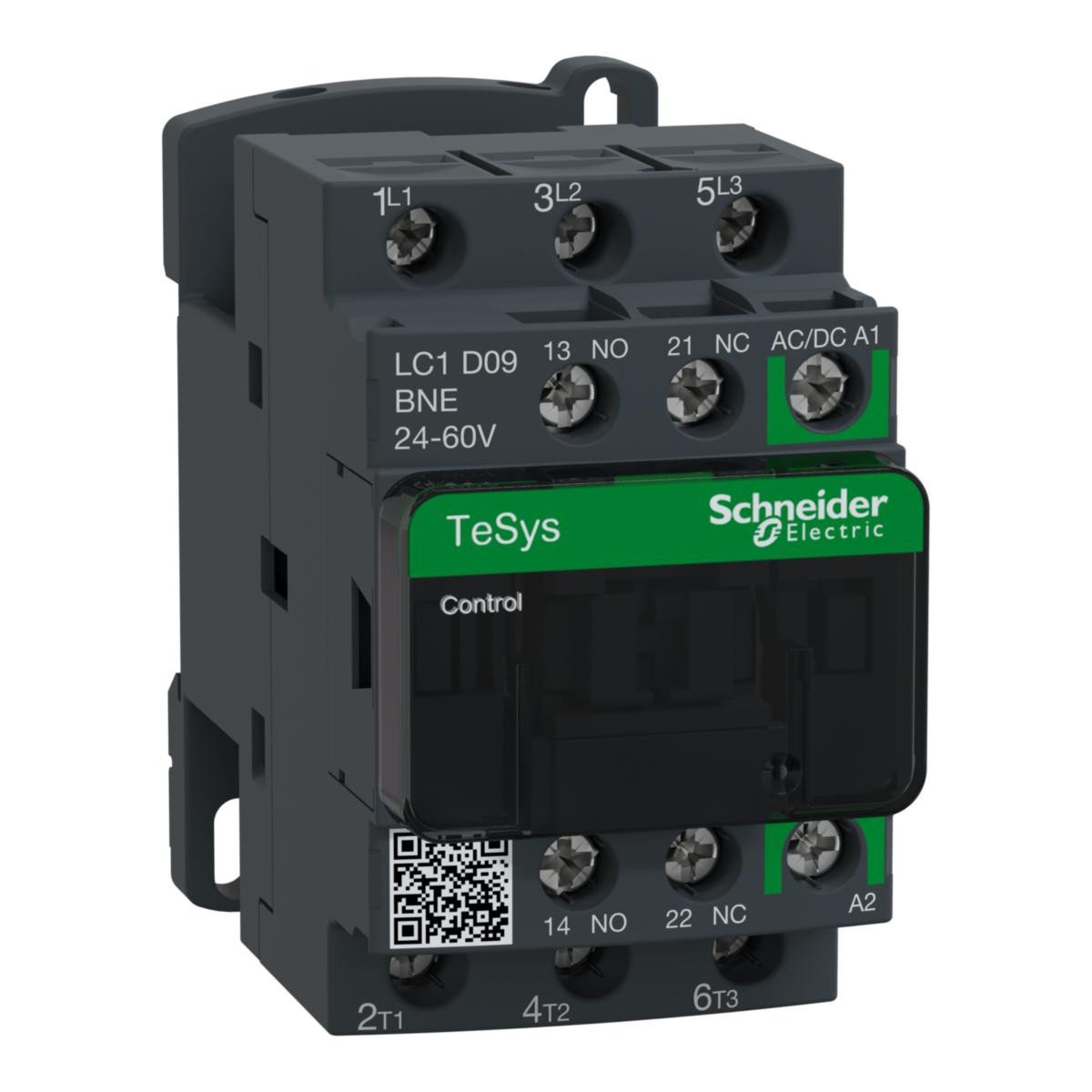

CONTACTOR-3P-AC3-<=440V 9A -2 LC1D09BNE
Article number: Suppl. article no:
3230024
LC1D09BNE
to see price and stock
TeSys D Green - a green range of contactors.
The products are equipped with an innovative electronic coil that uses up to 80 percent less energy and generates up to 50 percent less heat inside electrical cabinets compared to electromechanical contactors.
TeSys D Green helps large process and manufacturing industries to reduce energy costs and achieve their sustainability goals.
• Innovative electronic coil reduces energy costs
• Robust design increases process reliability
• Connection directly via PLC control
• Flexibility to meet requirements and enable replacement of standard contactors
• Easy to install and use
The products are equipped with an innovative electronic coil that uses up to 80 percent less energy and generates up to 50 percent less heat inside electrical cabinets compared to electromechanical contactors.
TeSys D Green helps large process and manufacturing industries to reduce energy costs and achieve their sustainability goals.
• Innovative electronic coil reduces energy costs
• Robust design increases process reliability
• Connection directly via PLC control
• Flexibility to meet requirements and enable replacement of standard contactors
• Easy to install and use
- Article number: 3230024
- Suppl. article no: LC1D09BNE
- Ean no: 3606480987632
- Material class QO360B
Technical data
- Packagin Size: 1 ST/15 ST
- Rated operation power at AC-3, 400 V: 4 kW
- Rated operation current Ie at AC-1, 400 V: 25 A
- Rated operation current Ie at AC-3, 400 V: 9 A
- Rated control supply voltage AC 50 Hz: 24-60 V
- Rated control supply voltage DC: 24-60 V
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: 0
- Voltage type for actuating: AC/DC
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 1
- Type of electrical connection of main circuit: Screw connection
- Modular version: No
- Rated control supply voltage AC 60 Hz: 24-60 V
- REACH contains candidate substances: Bly
- REACH Date: 2022-07-20
- REACH Information obligation: Yes
