ABB

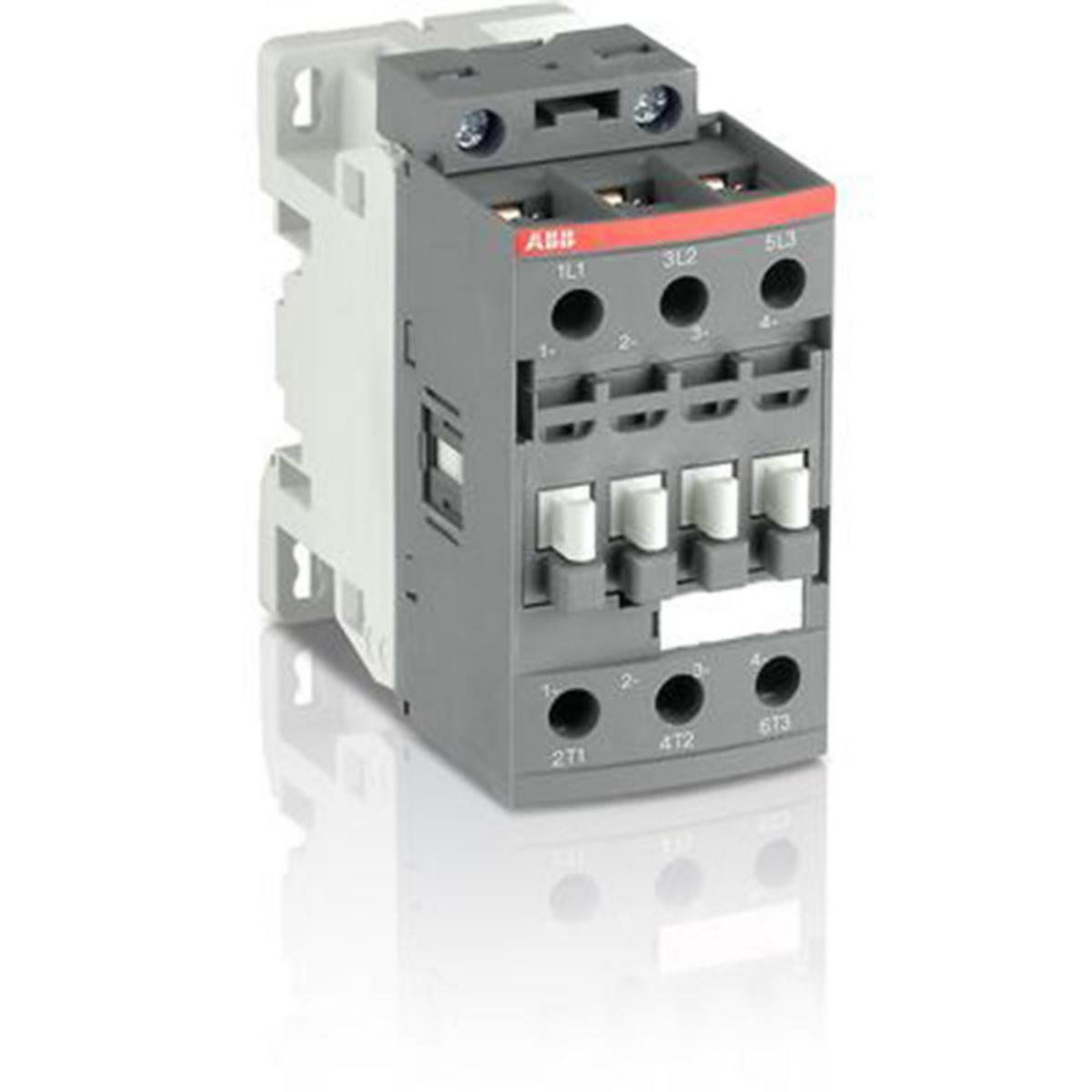

Contactor 3-pole with multi-coil AF09-AF38
AF38-30-00-13 CONTACTOR AF38-30-00-13
Article number: Suppl. article no:
3211386
1SBL297001R1300
to see price and stock
The advantages of a multi-coil contactor are:
•4 coils for all coil voltages from 24V to 500V AC/DC
•It can be AC or DC operated
•Handles weak grids i.e. low supply voltage or voltage drops
•It is energy effective, i.e. it has low losses
•4 coils for all coil voltages from 24V to 500V AC/DC
•It can be AC or DC operated
•Handles weak grids i.e. low supply voltage or voltage drops
•It is energy effective, i.e. it has low losses
- Article number: 3211386
- Suppl. article no: 1SBL297001R1300
- Ean no: 3471523111530
- Material class QO300B
Technical data
- Type: AF38-30-00-13
- Rated operation power at AC-3, 400 V: 18.5 kW
- Rated operation current Ie at AC-1, 400 V: 50 A
- Rated operation current Ie at AC-3, 400 V: 38 A
- Rated control supply voltage AC 50 Hz: 100-250 V
- Rated control supply voltage DC: 100-250 V
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: 0
- Voltage type for actuating: AC/DC
- Number of auxiliary contacts as normally open contact: 0
- Number of auxiliary contacts as normally closed contact: 0
- Type of electrical connection of main circuit: Screw connection
- Suitable for distribution board: No
- Rated operation power NEMA: 18.6425 kW
- Rated control supply voltage AC 60 Hz: 100-250 V
- REACH Date: 2022-01-18
- REACH Information obligation: No
