ABB

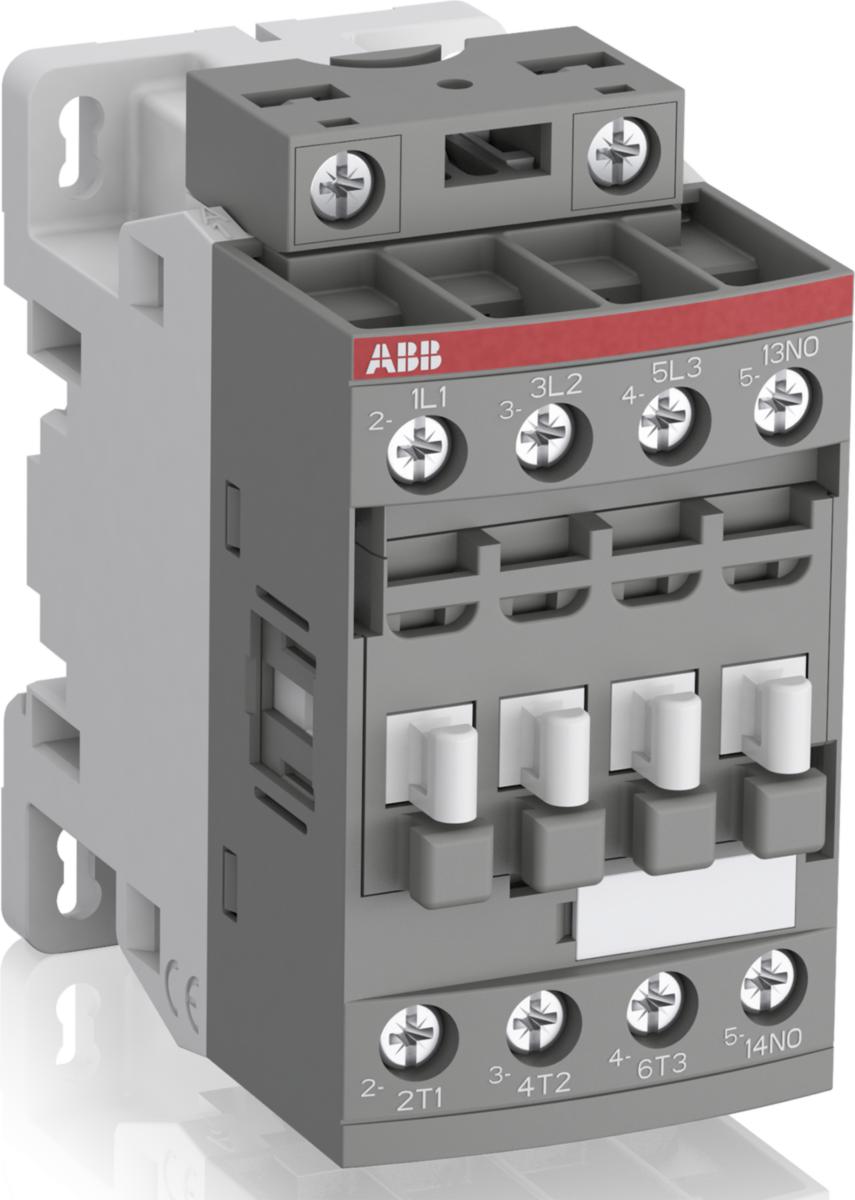

Contactor 3-pole with multi-coil AF09Z-AF38Z
AF09Z-30-10-21 24 CONTACTOR AF09Z-30-10-21
Article number: Suppl. article no:
3210005
1SBL136001R2110
to see price and stock
The advantages of a multi-coil contactor are:
•It can be AC or DC operated.
•Handles weak grids i.e. low supply voltage or voltage drops.
•It is energy effective, i.e. it has low losses.
•Can be inspected directly by a PLC with 24 VDC / 500mA output.
•It can be AC or DC operated.
•Handles weak grids i.e. low supply voltage or voltage drops.
•It is energy effective, i.e. it has low losses.
•Can be inspected directly by a PLC with 24 VDC / 500mA output.
- Article number: 3210005
- Suppl. article no: 1SBL136001R2110
- Ean no: 3471523113213
- Material class QO300B
Technical data
- Type: AF09Z-30-10-21
- Rated operation power at AC-3, 400 V: 4 kW
- Rated operation current Ie at AC-1, 400 V: 25 A
- Rated operation current Ie at AC-3, 400 V: 9 A
- Rated control supply voltage AC 50 Hz: 24-60 V
- Rated control supply voltage DC: 24-60 V
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: 0
- Voltage type for actuating: AC/DC
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 0
- Type of electrical connection of main circuit: Screw connection
- Suitable for distribution board: No
- Rated operation power NEMA: 3.7285 kW
- Rated control supply voltage AC 60 Hz: 24-60 V
- REACH Date: 2022-01-18
- Dimension other: 45X77X80
- Auxiliary contacts: sl
- REACH Information obligation: No
