Weidmüller

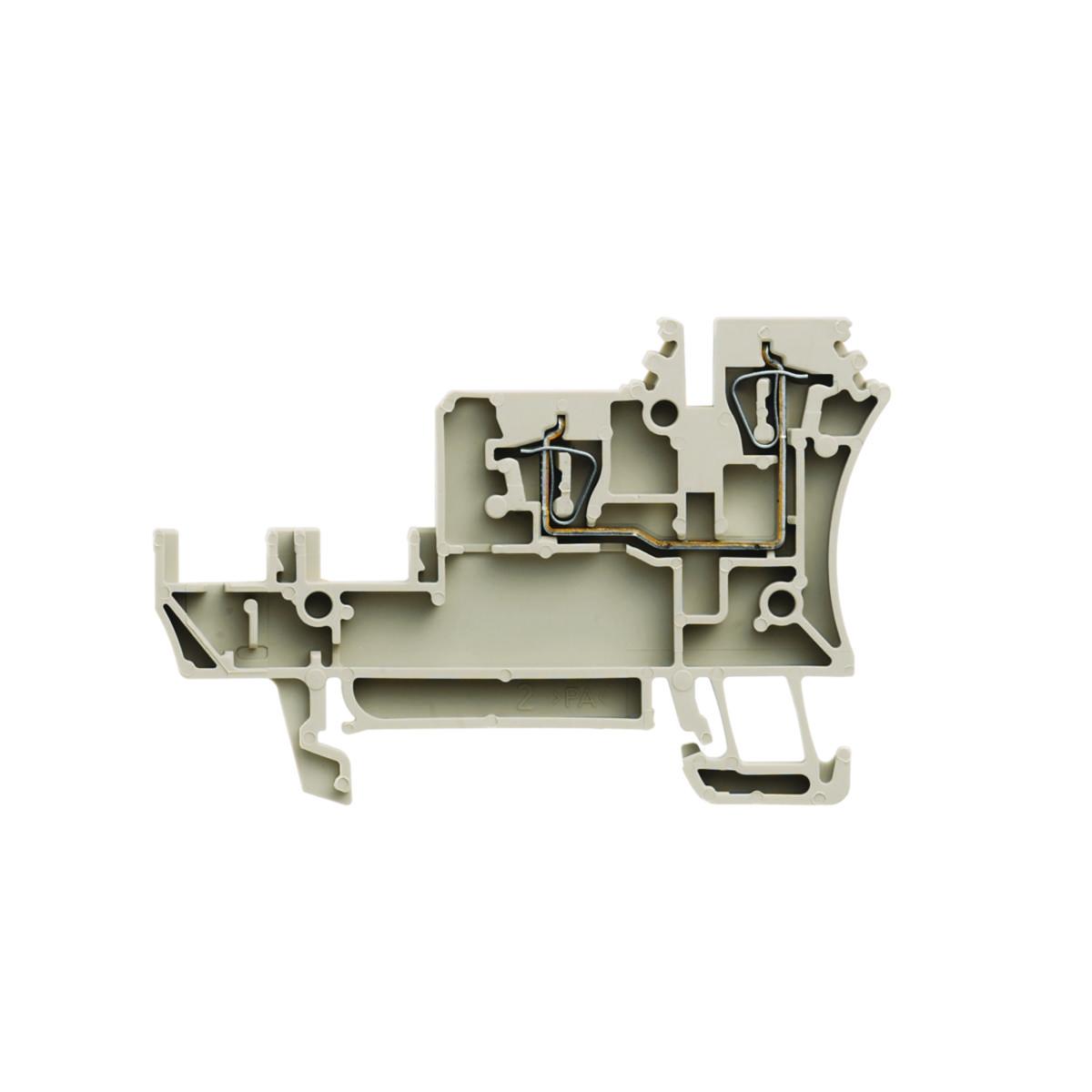

Base clamp ZIA for 3 wires
TERMINAL ZIA1,5/3L-1S 1651980000
Article number: Suppl. article no:
2920621
1651980000
to see price and stock
ZIK/ZAK initiator and actor clamps 250 V.
- Article number: 2920621
- Suppl. article no: 1651980000
- Ean no: 4008190401634
- Material class QN0200
Technical data
- Packagin Size: 1 PCS/100 PCS
- Type: ZIA1,5/3L-1S
- Connectable conductor cross section solid-core: 0.5-2.5 mm²
- Connectable conductor cross section fine-strand without cable end sleeve: 0.5-2.5 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 0.5-1.5 mm²
- Connection position: Atop
- Number of clamp positions per level: 2
- Number of levels: 1
- Colour: Beige
- Closing plate required: Yes
- Width/grid dimension: 5.08 mm
- Operating temperature: -50-120 °C
- Explosion-tested version 'Ex e': No
- Inflammability class of insulation material according to UL94: V0
- Internally connected stages: No
- Colour light source: Other
- Length: 45.5 mm
- Material insulation body: Thermoplastic
- With PE connection: No
- With power supply function: No
- Mounting method: DIN rail (top hat rail) 35 mm
- Rated voltage: 250 V
- Rated current In: 17.5 A
- Type of electrical connection 1: Spring clamp connection
- Type of electrical connection 2: Other
- Width: 5.08 mm
- Depth: 45.5 mm
- Height: 68.5 mm
- REACH Date: 2022-10-28
- REACH Information obligation: No
