Weidmüller
Earthing clamps ZPE Standard
TERMINAL ZPE16 16MM2 GR/YELLOW 1745250000
Article number: Suppl. article no:
2919580
1745250000
to see price and stock

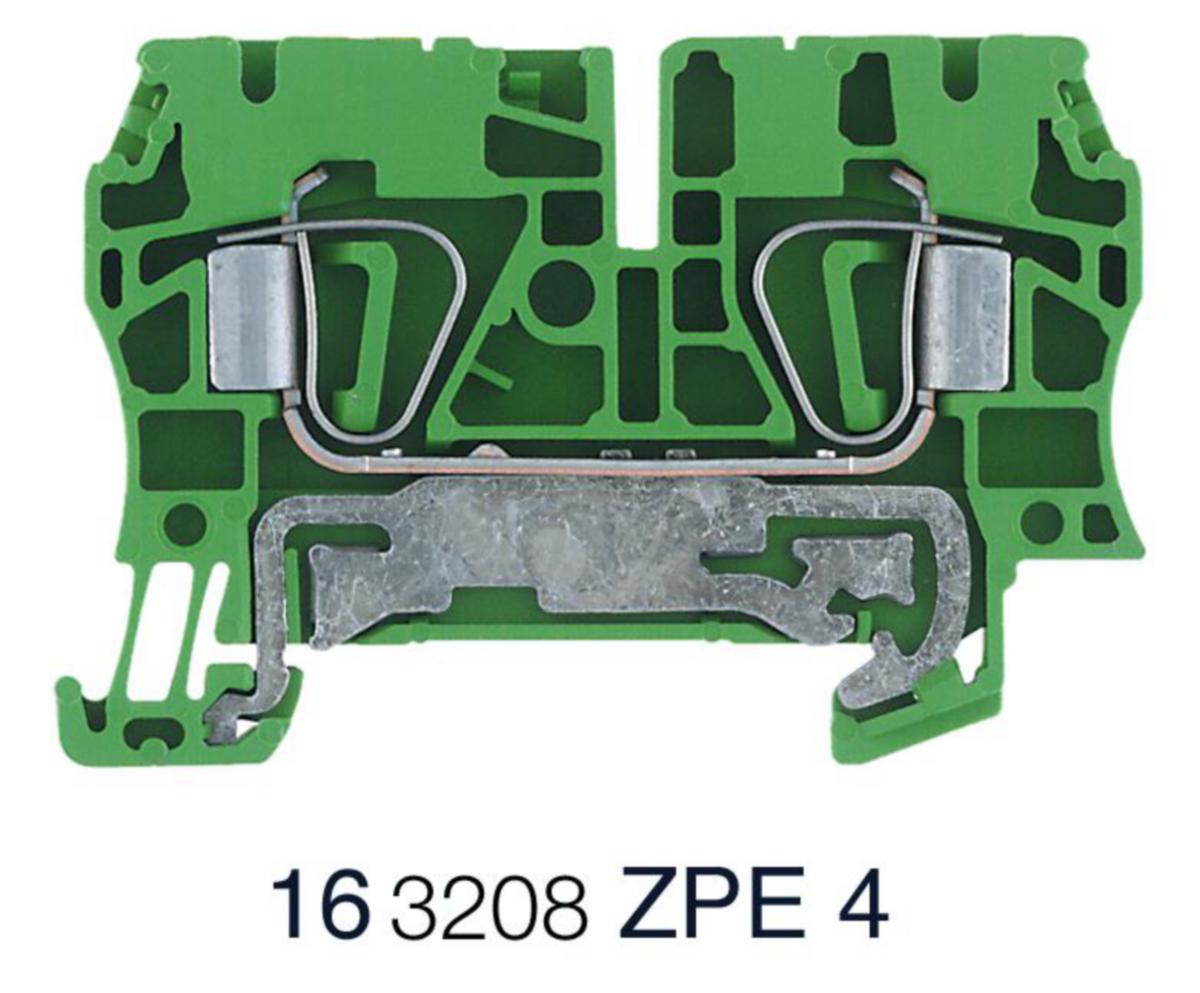

Z series spring plinth, protective conductor plinth, Tension clamp connection, Wemid, green/yellow
- Article number: 2919580
- Suppl. article no: 1745250000
- Ean no: 4008190996789
- Material class QN0200
Technical data
- Packagin Size: 1 ST/25 ST
- Type: ZPE 16
- PEN function possible: Yes
- Width/grid dimension: 12.1 mm
- Length: 50.5 mm
- Connectable conductor cross section multi-wired: 1.5-25 mm²
- Colour: Green/yellow
- Type of electrical connection 1: Spring clamp connection
- Connection position: Atop
- Number of levels: 1
- Number of clamp positions per level: 2
- Mounting method: DIN rail (top hat rail) 35 mm
- Material insulation body: Thermoplastic
- Operating temperature: -50-120 °C
- Inflammability class of insulation material according to UL94: V0
- Connectable conductor cross section fine-strand without cable end sleeve: 1.5-16 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 1.5-16 mm²
- Connectable conductor cross section solid-core: 1.5-16 mm²
- Closing plate required: Yes
- Width: 12.1 mm
- Depth: 50.5 mm
- Height: 82.5 mm
- REACH Date: 2022-10-28
- Colour: green/yellow
- REACH Information obligation: No
