Weidmüller

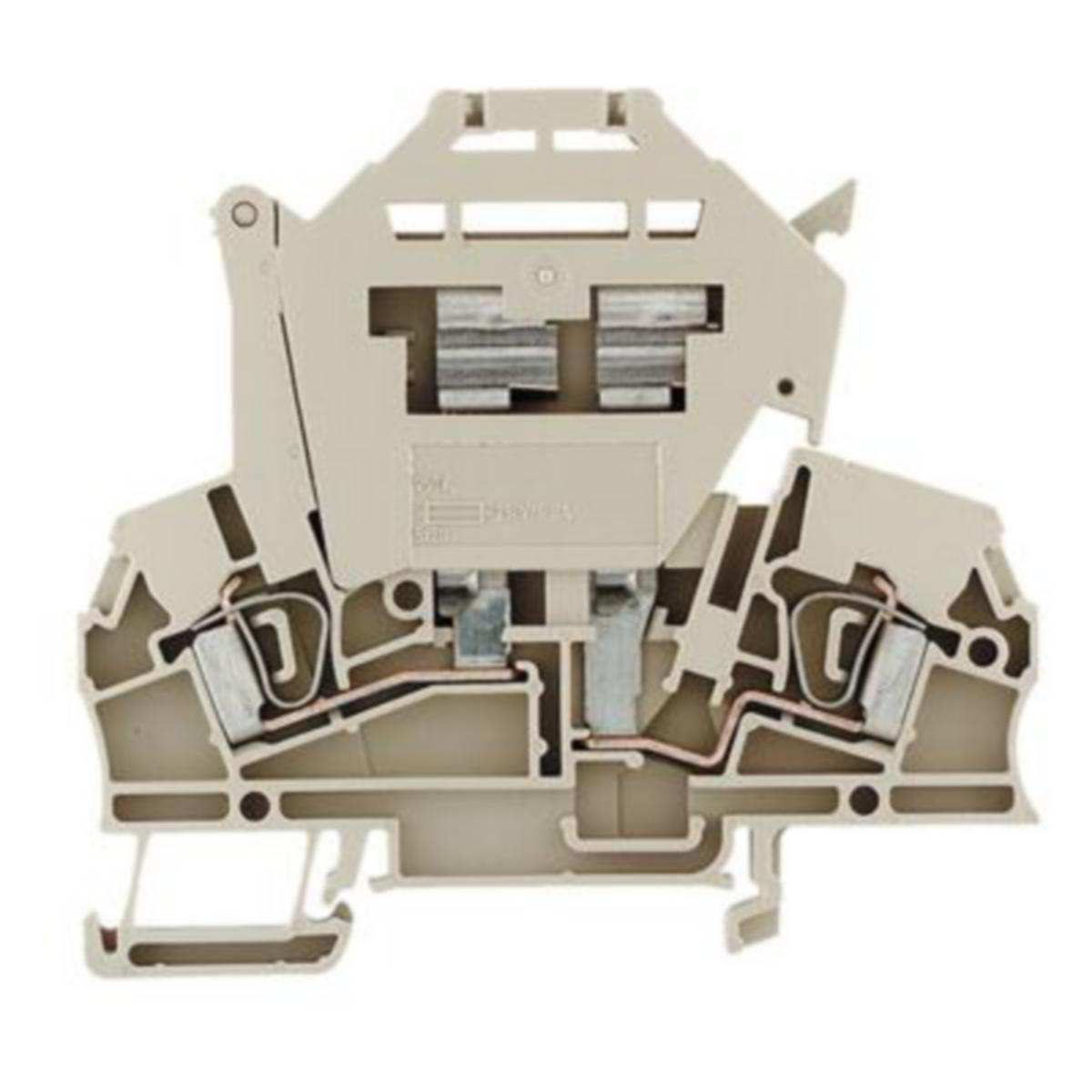

Fuse clamp ZSI
TERMINAL ZSI 2,5 1616400000
Artikelnummer: Lev. artikelnr:
2919545
1616400000
för att se saldo och pris
For 5 x 20 mm fuse
- Article number: 2919545
- Suppl. article no: 1616400000
- Ean no: 4008190196592
- Material class QN0200
Teknisk data
- Packagin Size: 1 PCS/50 PCS/50 PCS
- Type: ZSI 2,5
- Type of fuse insert: G-fuse 5x20 mm
- Type of fuse holder: Swivelling
- Type of indication element for defect indication: None
- Supply voltage for defect-indication: 500 V
- Voltage type for defect indication: AC/DC
- Connectable conductor cross section fine-strand without cable end sleeve: 0.5-4 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 0.5-2.5 mm²
- Connectable conductor cross section solid-core: 0.5-4 mm²
- Rated current In: 6.3 A
- Rated voltage: 250 V
- Type of electrical connection 1: Spring clamp connection
- Type of electrical connection 2: Other
- Number of levels: 1
- Mounting method: DIN rail (top hat rail) 35 mm
- Material insulation body: Thermoplastic
- Operating temperature: -50-120 °C
- Inflammability class of insulation material according to UL94: V0
- Width/grid dimension: 8 mm
- Closing plate required: Yes
- Colour: Beige
- Width: 7.9 mm
- Height: 79.5 mm
- Depth: 73 mm
- REACH Date: 2022-10-28
- REACH Information obligation: No
