Weidmüller
Through clamps type ZDU Ceiling

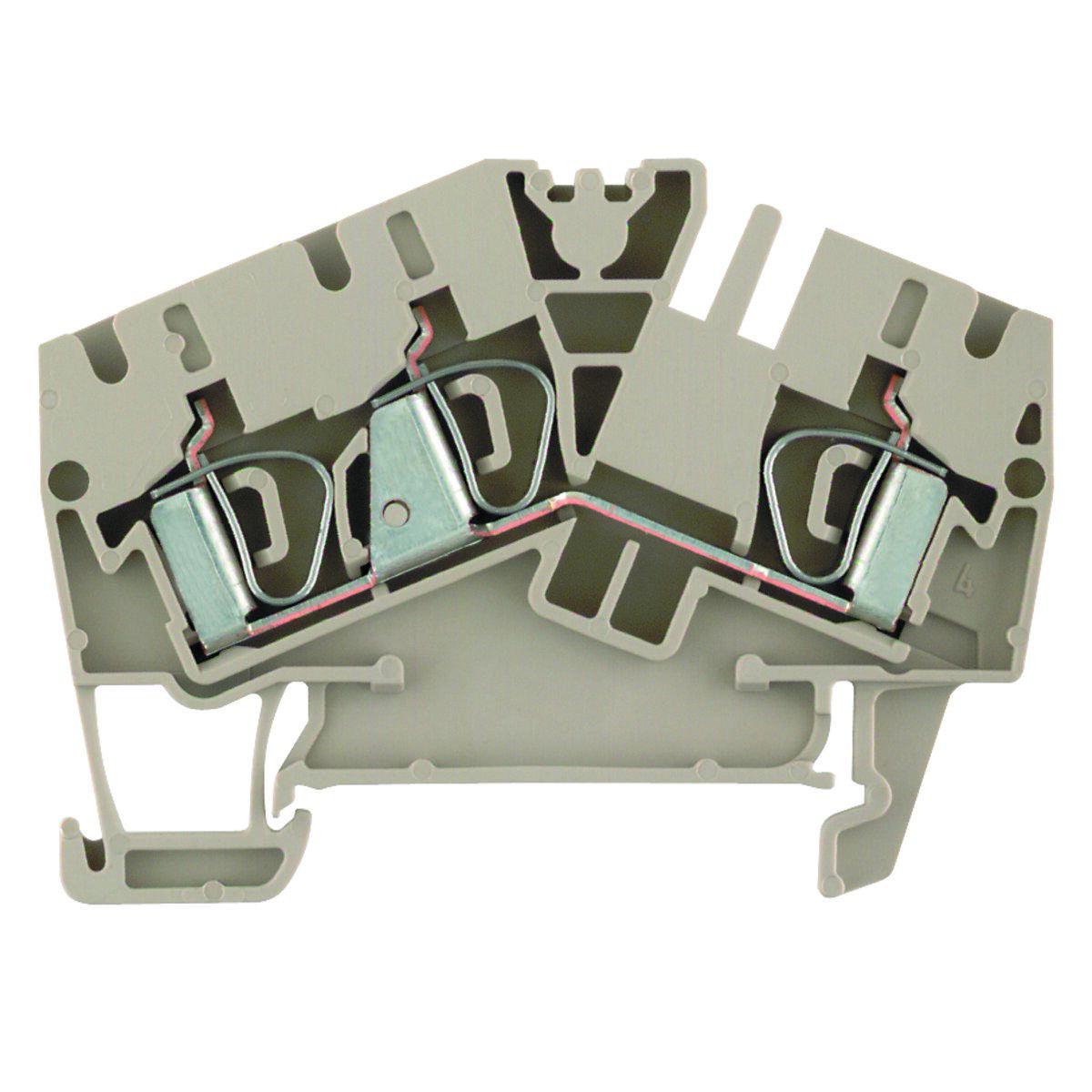

TERMINAL ZDU4-2/3AN BEIGE 1770360000
Article number: Suppl. article no:
2919491
1770360000
to see price and stock
Modular terminals in tension clamp technology, the Z series is specially attuned to the client's needs:
small construction space, generous marking areas, integrated Measuring outlet, bridging bar to the Z-series and other Weidmüller terminal-families.
the terminals Z-series have a wide clamping range and up to two bridge connection channels.
With insertable standard bridge connections, potentials can be distributed across any number of terminals.
small construction space, generous marking areas, integrated Measuring outlet, bridging bar to the Z-series and other Weidmüller terminal-families.
the terminals Z-series have a wide clamping range and up to two bridge connection channels.
With insertable standard bridge connections, potentials can be distributed across any number of terminals.
- Article number: 2919491
- Suppl. article no: 1770360000
- Ean no: 4032248143191
- Material class QN0200
Technical data
- Packagin Size: 1 PCS/100 PCS/100 PCS
- Type: ZDU 4-2/3AN
- Connectable conductor cross section fine-strand without cable end sleeve: 0.5-4 mm²
- Colour: Beige
- Rated current In: 32 A
- Rated voltage: 800 V
- Number of levels: 1
- Number of clamp positions per level: 3
- Mounting method: DIN rail (top hat rail) 35 mm
- Operating temperature: -50-120 °C
- Inflammability class of insulation material according to UL94: V0
- Width/grid dimension: 6.1 mm
- Length: 61.5 mm
- Width: 6.1 mm
- Depth: 45.5 mm
- Height: 61.5 mm
- Explosion-tested version 'Ex e': Yes
- Closing plate required: Yes
- Internally connected stages: No
- Connectable conductor cross section fine-strand with cable end sleeve: 0.5-4 mm²
- Connectable conductor cross section solid-core: 0.5-6 mm²
- Material insulation body: Thermoplastic
- Type of electrical connection 1: Spring clamp connection
- REACH Date: 2022-10-28
- REACH Information obligation: No
- Connection position: Inclined
