Weidmüller

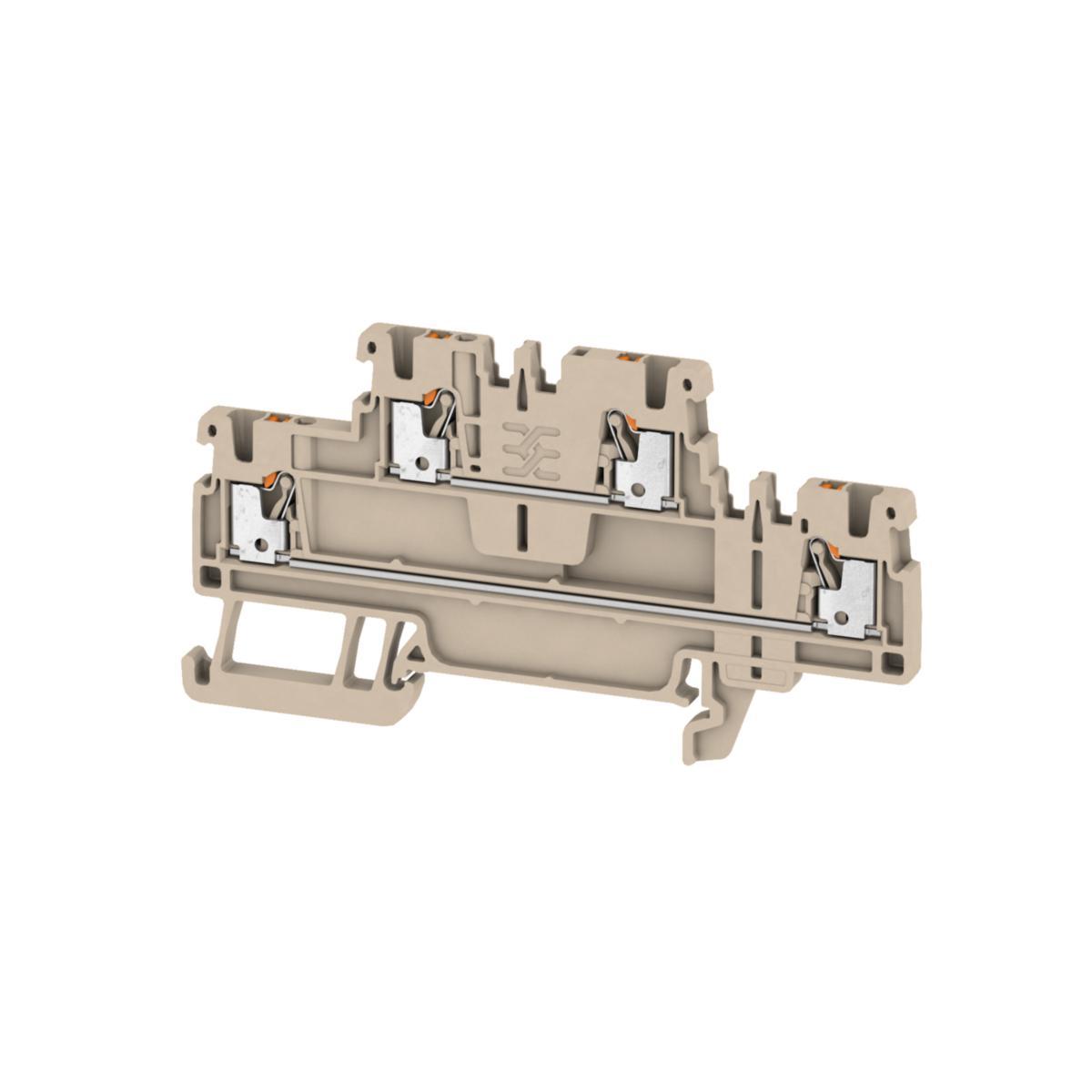

Throughput terminal A2T
TERMINAL A2T 1.5
Article number: Suppl. article no:
2919349E
2469370000
to see price and stock
The innovative PUSH IN technology reduces the time you need for wiring to a minimum. Direct connection technology guarantees high pull-out forces for conductors and easy handling for all types of conductors.
- Article number: 2919349E
- Suppl. article no: 2469370000
- Ean no: 4050118485387
- Material class QN0200
Technical data
- Packagin Size: 1 ST/50 ST/50 ST
- Connectable conductor cross section fine-strand without cable end sleeve: 0.5-1.5 mm²
- Colour: Beige
- Rated current In: 16 A
- Rated voltage: 500 V
- Number of levels: 2
- Number of clamp positions per level: 2
- Mounting method: DIN rail (top hat rail) 35 mm
- Operating temperature: -60-130 °C
- Inflammability class of insulation material according to UL94: V0
- Width/grid dimension: 3.5 mm
- Length: 84 mm
- Width: 3.5 mm
- Depth: 45 mm
- Height: 84 mm
- Closing plate required: Yes
- Internally connected stages: No
- Connectable conductor cross section fine-strand with cable end sleeve: 0.5-1.5 mm²
- Connectable conductor cross section solid-core: 0.5-1.5 mm²
- Connectable conductor cross section multi-wired: 0.5-1.5 mm²
- Material insulation body: Thermoplastic
- Type of electrical connection 1: Plug-in connection
- REACH Date: 2022-10-28
- REACH Information obligation: No
- Connection position: Atop
