Weidmüller

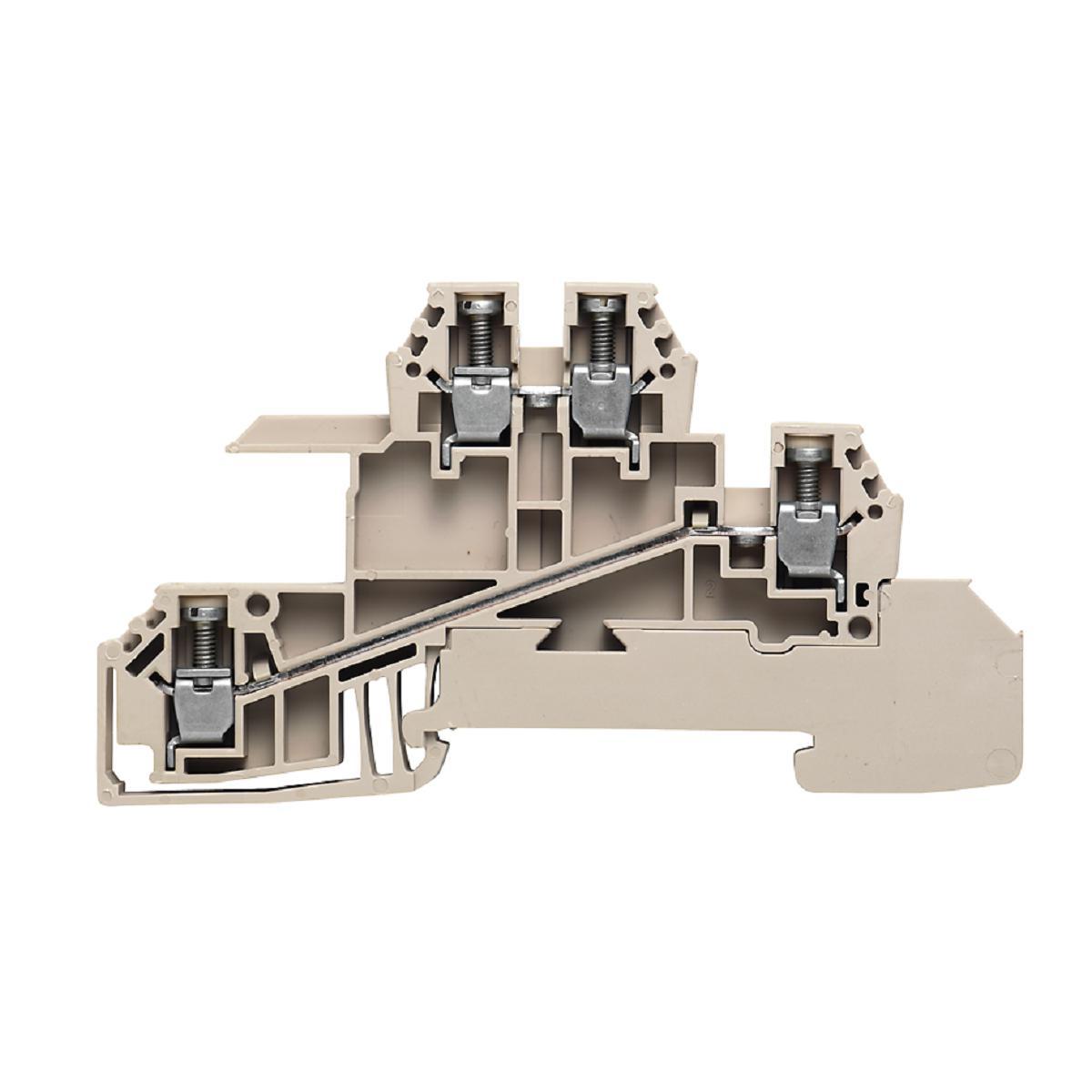

Three-storey installation terminals WDL
TERMINAL WDL2,5/S/L/L 1031200000
Article number: Suppl. article no:
2919675
1031200000
to see price and stock
250/400V for N-through-wiring WQV
- Article number: 2919675
- Suppl. article no: 1031200000
- Ean no: 4008190189259
- Material class QN0200
Technical data
- Packagin Size: 1 PCS/50 PCS
- Type: WDL 2.5/S/L/L
- Connectable conductor cross section fine-strand without cable end sleeve: 0.5-4 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 0.5-2.5 mm²
- Connectable conductor cross section solid-core: 0.5-4 mm²
- Connectable conductor cross section multi-wired: 1.5-4 mm²
- Rated current In: 24 A
- Rated voltage: 400 V
- Type of electrical connection 1: Screw connection
- Type of electrical connection 2: Other
- Connection position: Sideways
- Number of potentials: 2
- Width: 6.1 mm
- Depth: 48 mm
- Height: 84.5 mm
- Closing plate required: Yes
- Basic colour: Beige
- Width/grid dimension: 6.1 mm
- Operating temperature: -50-120 °C
- Inflammability class of insulation material according to UL94: V0
- Length: 84.5 mm
- Material insulation body: Thermoplastic
- PE-function: No
- Mounting method: DIN rail (top hat rail) 35 mm
- N function possible: No
- REACH Date: 2022-10-28
- REACH Information obligation: No
