Weidmüller

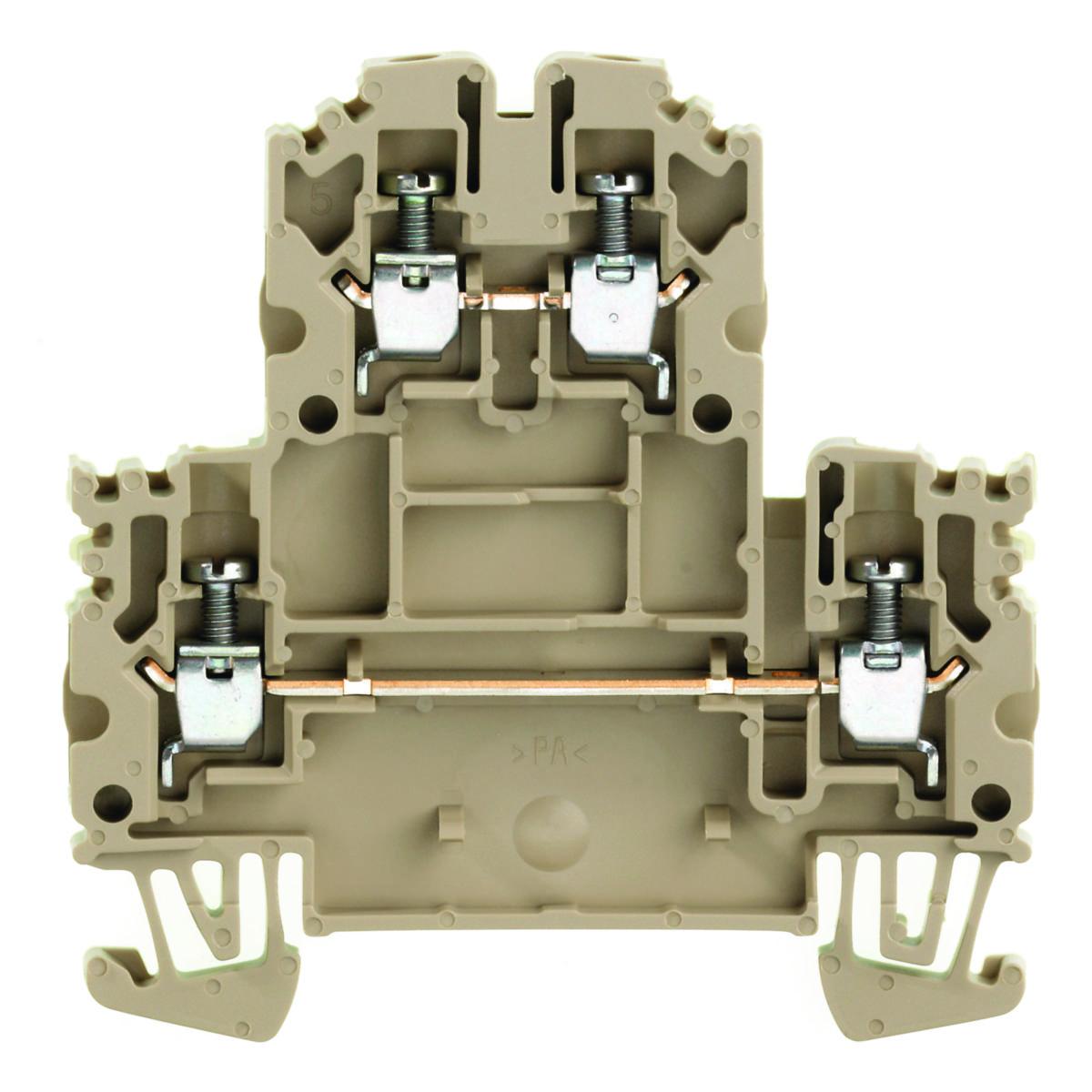

Double-decker terminal block WDK
TERMINAL WDK 2,5 N 4 MM2 1041600000
Article number: Suppl. article no:
2919622
1041600000
to see price and stock
With two-levels, WDK terminal connects 2 potentials in a single clamp. A further significant difference is the type of switching for potential distribution, which can either be screw-in (WQV) or insertable (ZQV).
- Article number: 2919622
- Suppl. article no: 1041600000
- Ean no: 4032248138807
- Material class QN0200
Technical data
- Packagin Size: 1 PCS/100 PCS
- Type: WDK2.5N
- Colour: Beige
- Connectable conductor cross section multi-wired: 1.5-4 mm²
- Rated current In: 24 A
- Rated voltage: 800 V
- Width/grid dimension: 5.1 mm
- Connectable conductor cross section solid-core: 0.5-4 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 0.5-2.5 mm²
- Type of electrical connection 1: Screw connection
- Number of levels: 2
- Number of clamp positions per level: 2
- Mounting method: DIN rail (top hat rail) 35 mm
- Material insulation body: Thermoplastic
- Closing plate required: Yes
- Internally connected stages: No
- Connectable conductor cross section fine-strand without cable end sleeve: 0.5-4 mm²
- Operating temperature: -60-130 °C
- Inflammability class of insulation material according to UL94: V0
- Explosion-tested version 'Ex e': Yes
- Width: 5.1 mm
- Depth: 62 mm
- Height: 61 mm
- Length: 61 mm
- Connection position: Sideways
- REACH Date: 2022-10-28
- REACH Information obligation: No
