Schneider Electric

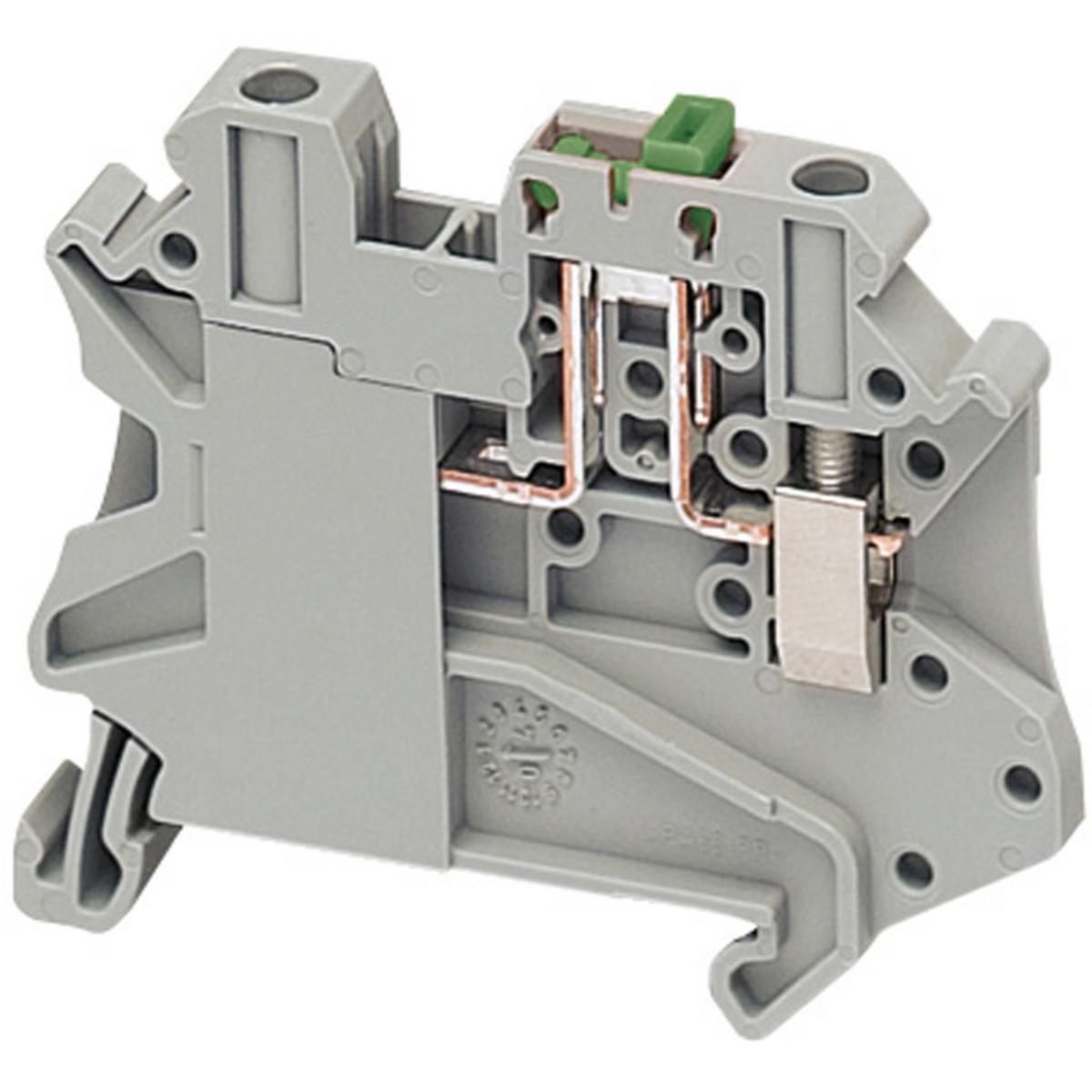

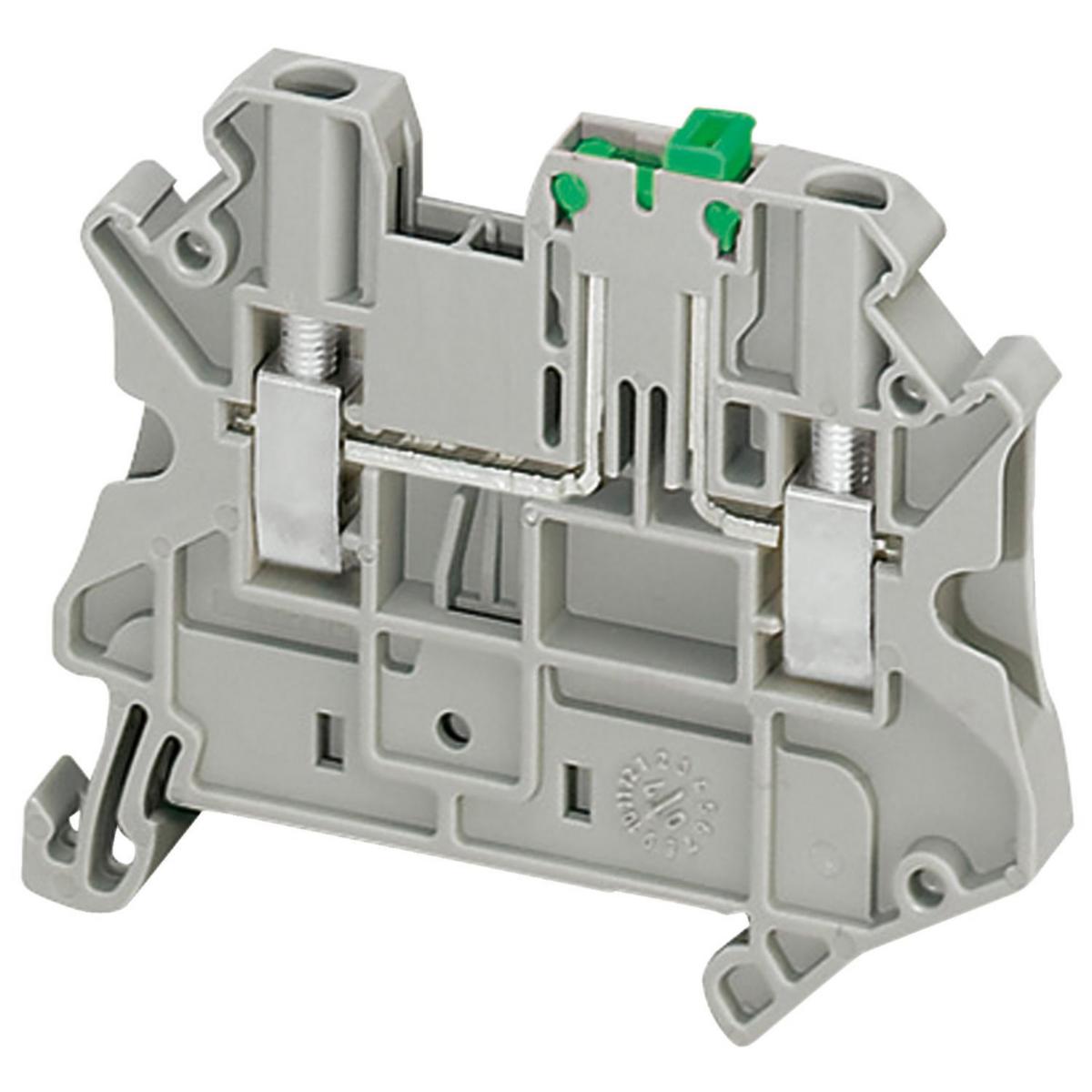

Terminal block with knife disconnection NSYTRV
SCREW TERM KNIFE DISCON 2 POIN NSYTRV22SC
Article number: Suppl. article no:
2916275
NSYTRV22SC
to see price and stock
With knife separation
- Article number: 2916275
- Suppl. article no: NSYTRV22SC
- Ean no: 3606480692512
- Material class QN0830
Technical data
- Packagin Size: 50 ST/700 ST
- Colour: Grey
- Connectable conductor cross section fine-strand without cable end sleeve: 0.14-4 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 0.14-4 mm²
- Connectable conductor cross section solid-core: 0.14-4 mm²
- Connectable conductor cross section multi-wired: 0.14-4 mm²
- Width/grid dimension: 5.2 mm
- Length: 57.8 mm
- Rated current In: 20 A
- Rated voltage: 500 V
- Type of electrical connection 1: Screw connection
- Type of electrical connection 2: Screw connection
- Connection position: Sideways
- Number of levels: 1
- Number of clamp positions per level: 1
- Internally connected stages: No
- Mounting method: DIN rail (top hat rail) 35 mm
- Material insulation body: Thermoplastic
- Inflammability class of insulation material according to UL94: V0
- Operating temperature: -40-130 °C
- Closing plate required: Yes
- Type of slitting: Swivelling
- Type of cross disconnection: Swivelling
- With integrated test socket: No
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
