Schneider Electric

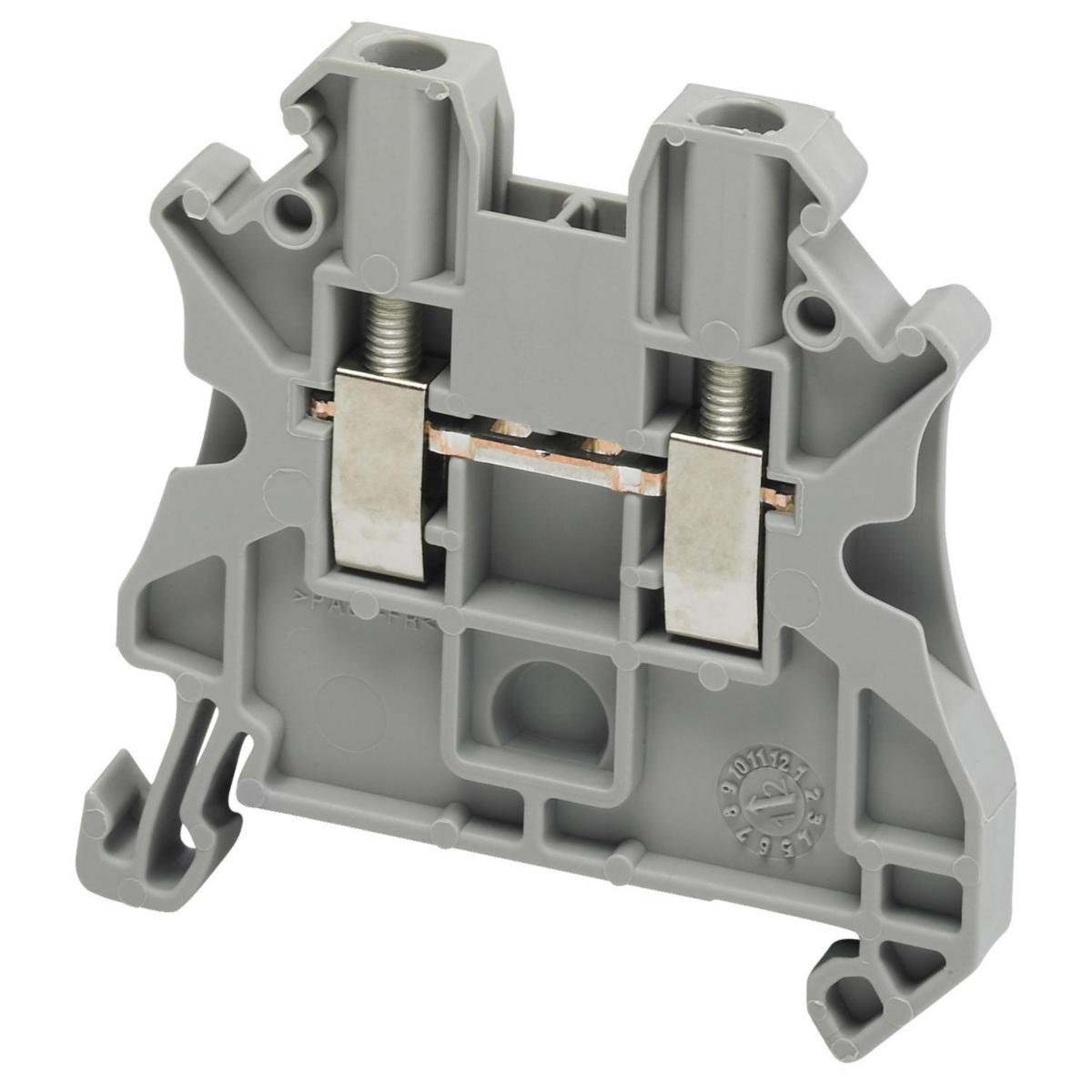

Terminal block NSYTRV
SCREW TERM FEEDTHR 2PTS 2,5MM² NSYTRV22
Article number: Suppl. article no:
2916248
NSYTRV22
to see price and stock
Gray and blue
- Article number: 2916248
- Suppl. article no: NSYTRV22
- Ean no: 3606480531798
- Material class QN0830
Technical data
- Packagin Size: 1 ST/50 ST/12100 ST
- Colour: Grey
- Connectable conductor cross section multi-wired: 0.14-4 mm²
- Rated current In: 24 A
- Rated voltage: 1000 V
- Width/grid dimension: 5.2 mm
- Connectable conductor cross section solid-core: 0.14-4 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 0.2-2.5 mm²
- Type of electrical connection 1: Screw connection
- Type of electrical connection 2: Screw connection
- Number of levels: 1
- Number of clamp positions per level: 2
- Mounting method: DIN rail (top hat rail) 35 mm
- Material insulation body: Thermoplastic
- Closing plate required: Yes
- Internally connected stages: No
- Connectable conductor cross section fine-strand without cable end sleeve: 0.14-4 mm²
- Operating temperature: -40-130 °C
- Inflammability class of insulation material according to UL94: V0
- Explosion-tested version 'Ex e': Yes
- Length: 47.7 mm
- Connection position: Sideways
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
