Phoenix Contact
Fuse terminals, type UK

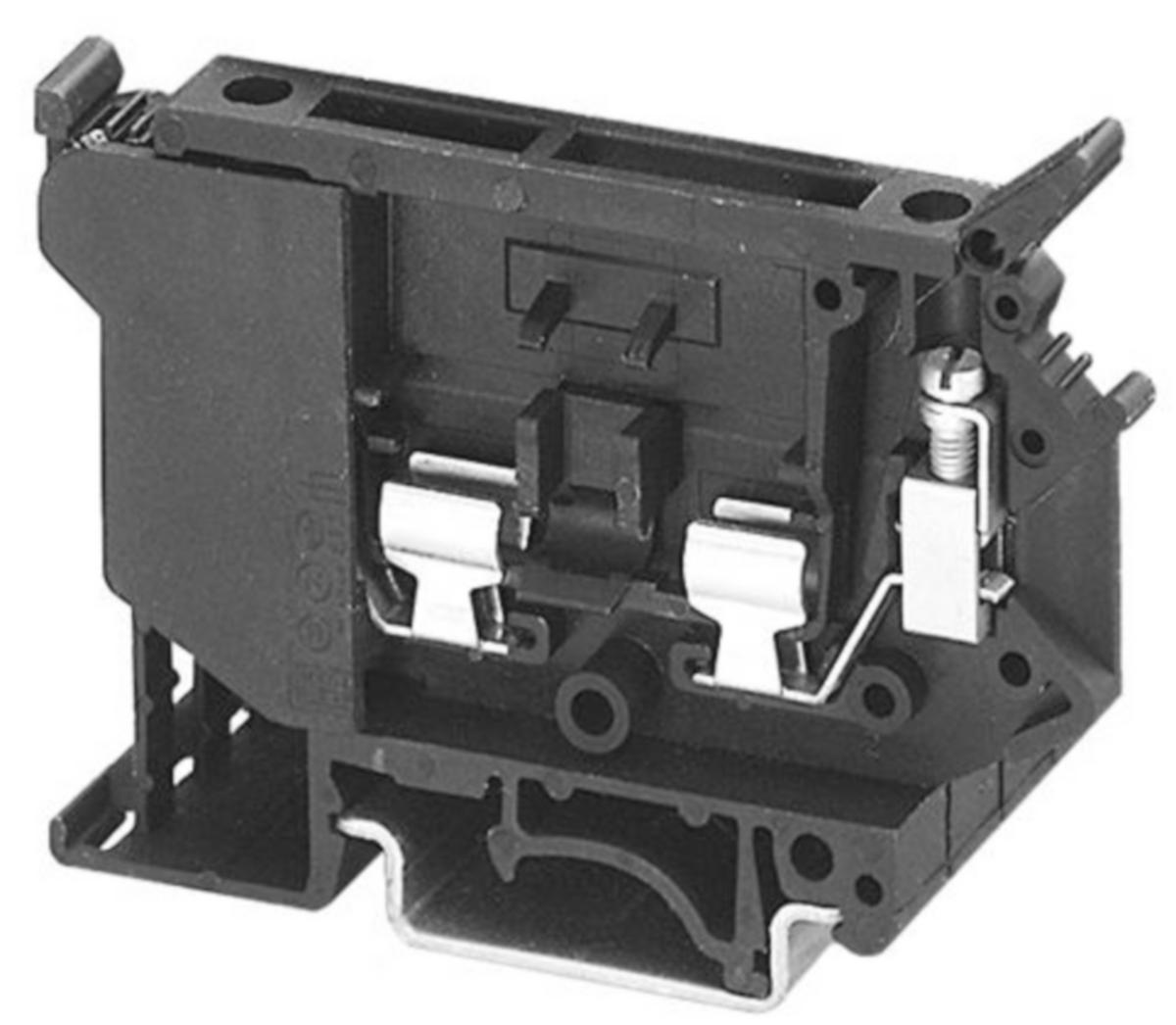

FUSE MODULAR TERMINAL BLOCK UK 6-FSI/C
Article number: Suppl. article no:
2910867E
3118203
to see price and stock
For fine fuse
Colour: Black
*) Current and voltage are determined by inserted fuse.
**) For fine fuses 5 x 20 , 5 x 25 , 5 x 30
Colour: Black
*) Current and voltage are determined by inserted fuse.
**) For fine fuses 5 x 20 , 5 x 25 , 5 x 30
- Article number: 2910867E
- Suppl. article no: 3118203
- Ean no: 4017918100605
- Material class QN0600
Technical data
- Packagin Size: 1 PCS/50 PCS
- Type: UK 6-FSI/C
- Type of fuse insert: Blade fuse
- Type of fuse holder: Pluggable
- Rated voltage: 250 V
- Width/grid dimension: 8.2 mm
- Connectable conductor cross section fine-strand without cable end sleeve: 0.2-6 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 0.25-6 mm²
- Connectable conductor cross section solid-core: 0.2-10 mm²
- Connectable conductor cross section multi-wired: 0.2-6 mm²
- Rated current In: 30 A
- Type of electrical connection 1: Screw connection
- Type of electrical connection 2: Screw connection
- Number of levels: 1
- Mounting method: DIN rail (top hat rail) 35 mm
- Material insulation body: Thermoplastic
- Inflammability class of insulation material according to UL94: V0
- Length: 64 mm
- Closing plate required: No
- Colour: Black
- REACH Date: 2022-02-25
- REACH Information obligation: No
