Phoenix Contact

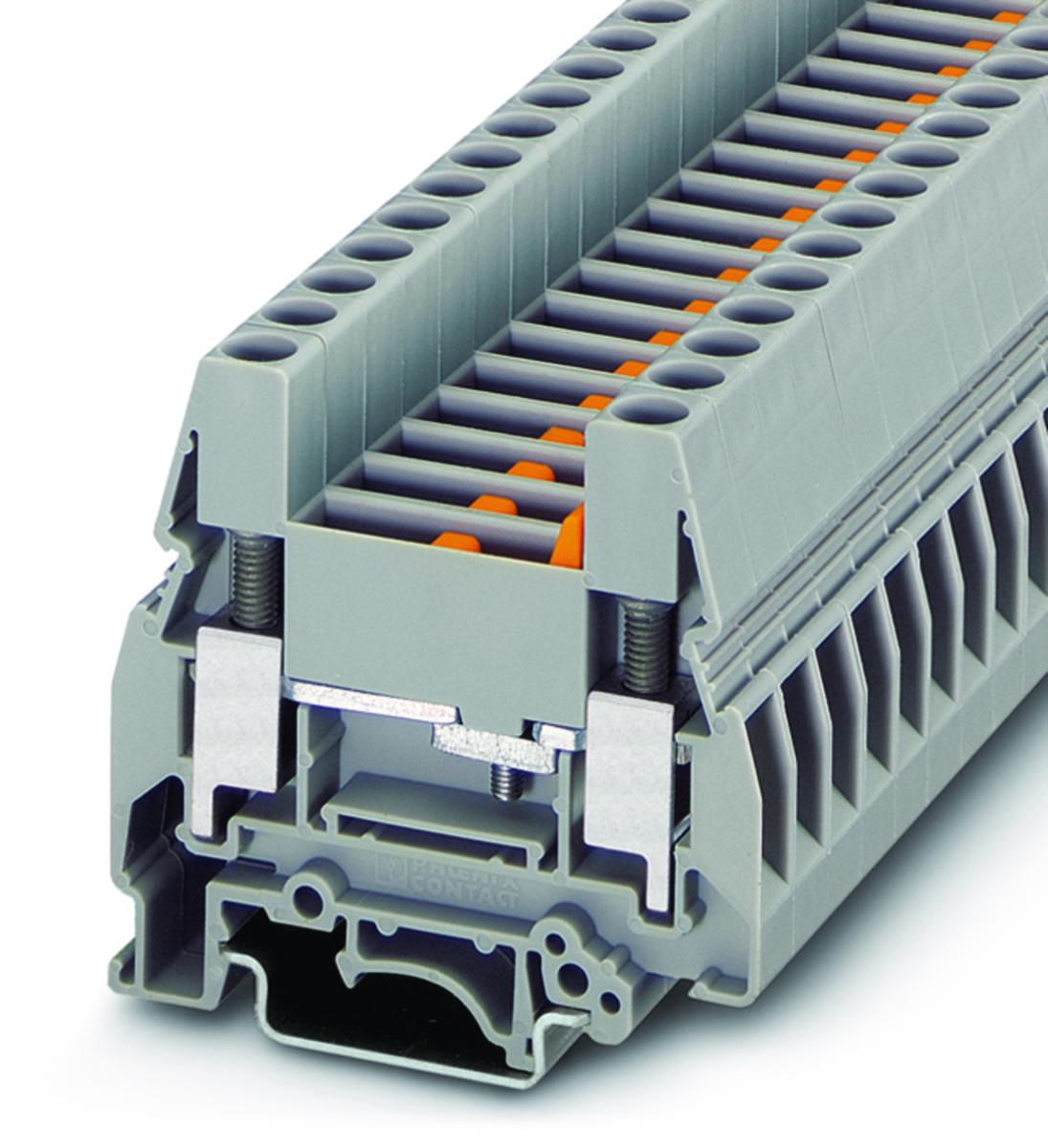

Ground modular terminal block, type URTK
COMPONENT TERMINAL BLOCK URTK/S-BEN 10
Article number: Suppl. article no:
2910366
0309109
to see price and stock
Terminals with longitudinal screw disconnection
Colour: Grey
Colour: Grey
- Article number: 2910366
- Suppl. article no: 0309109
- Ean no: 4017918155230
- Material class QN0600
Technical data
- Packagin Size: 1 PCS/50 PCS
- Type: URTK/S-BEN 10
- Colour: Grey
- Connectable conductor cross section fine-strand without cable end sleeve: 0.5-10 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 0.5-10 mm²
- Connectable conductor cross section solid-core: 0.5-16 mm²
- Connectable conductor cross section multi-wired: 0.5-10 mm²
- Width/grid dimension: 8.2 mm
- Length: 61 mm
- Rated current In: 57 A
- Rated voltage: 500 V
- Type of electrical connection 1: Screw connection
- Type of electrical connection 2: Screw connection
- Number of levels: 1
- Number of clamp positions per level: 2
- Internally connected stages: No
- Mounting method: DIN rail (top hat rail) 35 mm
- Material insulation body: Thermoplastic
- Inflammability class of insulation material according to UL94: V0
- Closing plate required: Yes
- With integrated test socket: No
- REACH Date: 2022-02-25
- REACH Information obligation: No
