Assa

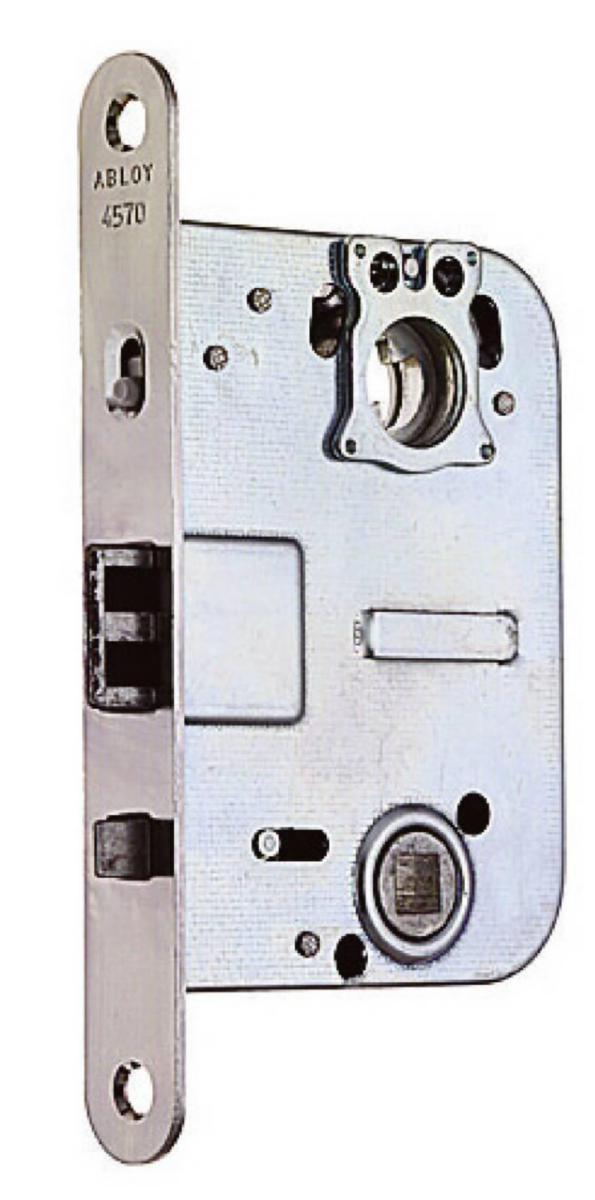

Lock housing ASSA (Boda) 4570
LOCKING HOUSING ASSA (BODA) LEFT SB
Article number: Suppl. article no:
163467
50010706
to see price and stock
For between doors with automatic deadbolt. The deadbolt is controlled by a button in the post. Button position up: interlocking,bolt out 20 mm, lock is opened only with key or by turning. Button position down: bolt out 14 mm, the lock can be also opened with pressure. Dimension post: 150x22 mm.
- Article number: 163467
- Suppl. article no: 50010706
- Ean no: 7391166241042
- Material class CX370B
Technical data
- Surface treatment: Polished chrome
- Height: 104 mm
- Deep: 20 mm
- Lock depth: 75 mm
- Mandrel depth: 45 mm
