Assa

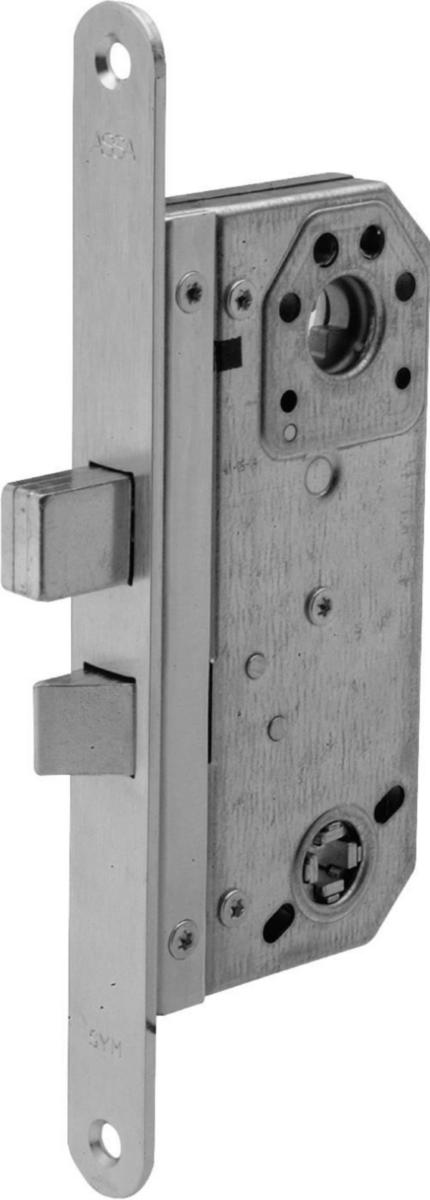

Lock housing ASSA 565
LOCK HOUSING ASSA 565-50Z SYM/OSYM V/H GDS/SB
Article number: Suppl. article no:
249256
102903
to see price and stock
A drop-down bracket lock suitable for doors without the need for approved locking and in solid interior doors. Reversible deadbolts.
Technical description
With pressure deadbolt and bracket
Can be fitted with toilet accessories 265
Suitable for both right and left-handed doors
Suitable for doors with symmetrical or non-symmetrical recess
GSD/SA pack contains
1 x Lock housing
1 x non-symmetrical post
2 s Screws
Technical description
With pressure deadbolt and bracket
Can be fitted with toilet accessories 265
Suitable for both right and left-handed doors
Suitable for doors with symmetrical or non-symmetrical recess
GSD/SA pack contains
1 x Lock housing
1 x non-symmetrical post
2 s Screws
- Article number: 249256
- Suppl. article no: 102903
- Ean no: 7391166015513
- Material class CX3701
Technical data
- Packagin Size: 1 FRP/3 FRP
- Height: 150 mm
- Deep: 20 mm
- Lock depth: 74 mm
- Mandrel depth: 50 mm
